Choosing the right software architecture is one of the most critical decisions in system design. As applications scale from simple web tools to distributed, highly available platforms, engineering teams must evaluate the tradeoffs between Monolithic, Microservices, and Serverless architectures.
This architectural blueprint breaks down the core structural differences, cost-efficiency profiles, and ideal usage scenarios for modern software systems.
1. Architectural Overview & Core Concepts
- Monolithic Architecture: All application components (UI, business logic, data access) are packaged and deployed as a single, unified codebase.
- Microservices Architecture: The application is decomposed into independent, loosely coupled services that communicate over APIs (REST/gRPC) and maintain their own databases.
- Serverless Architecture: Developers write and deploy event-driven functions (FaaS) without managing servers or infrastructure, relying entirely on cloud providers for scaling.
2. Comprehensive Architecture Comparison Matrix
| Metric | Monolithic | Microservices | Serverless (FaaS) |
|---|---|---|---|
| Development Complexity | Low (Single codebase) | High (Distributed network) | Moderate (Event-driven logic) |
| Deployment Speed | Slow for large apps | Independent per service | Rapid (Function-level) |
| Scalability | Vertical (Scale whole app) | Horizontal (Scale specific service) | Automatic / Dynamic |
| Operational Overhead | Low | High (Requires Kubernetes/DevOps) | Very Low (Provider-managed) |
| Infrastructure Cost | Predictable baseline | Higher base infrastructure | Pay-per-execution (Zero idle cost) |
3. Visual Comparison: Tradeoff Metrics & Performance Index
Below is a visual benchmark comparison across key operational dimensions:
A. Deployment Speed & Agility Index
Faster Deployment Cycle →
B. Maintenance & DevOps Overhead
Higher Infrastructure Complexity →

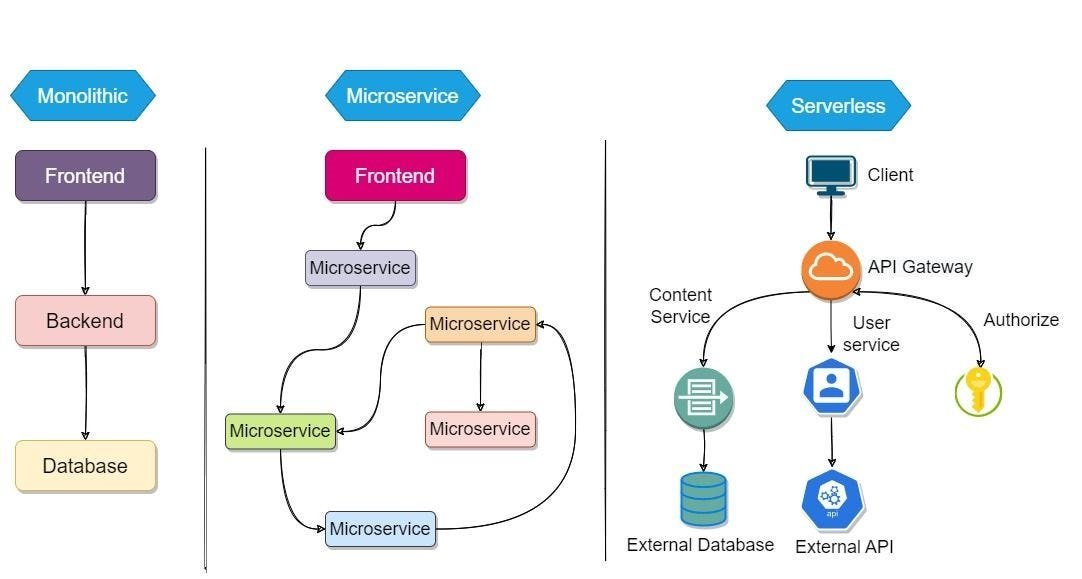

4. System Flow & Execution Diagram
The structural flow below illustrates how user requests travel through each architecture model
[Monolith Flow]
User Request → [ Load Balancer ] → [ Monolithic Application Server ] → [ Single Database ]
[Microservices Flow]
User Request → [ API Gateway ] —+→ [ Auth Service ] → [ Auth DB ]
|—→ [ Payment Service ] → [ Payment DB ]
+−→ [ Product Service ] → [ NoSQL DB ]
[Serverless Flow]
User Event → [ API Gateway ] → [ Lambda / Function ] → [ Cloud Database / S3 ]
